Hello! I wanna ask about does sdf lib works now? I really dont understand what i should do for draw any thing. Im following official tutorial (at asset party and github too). And when using add async - it doesn't works too. Help pleasee

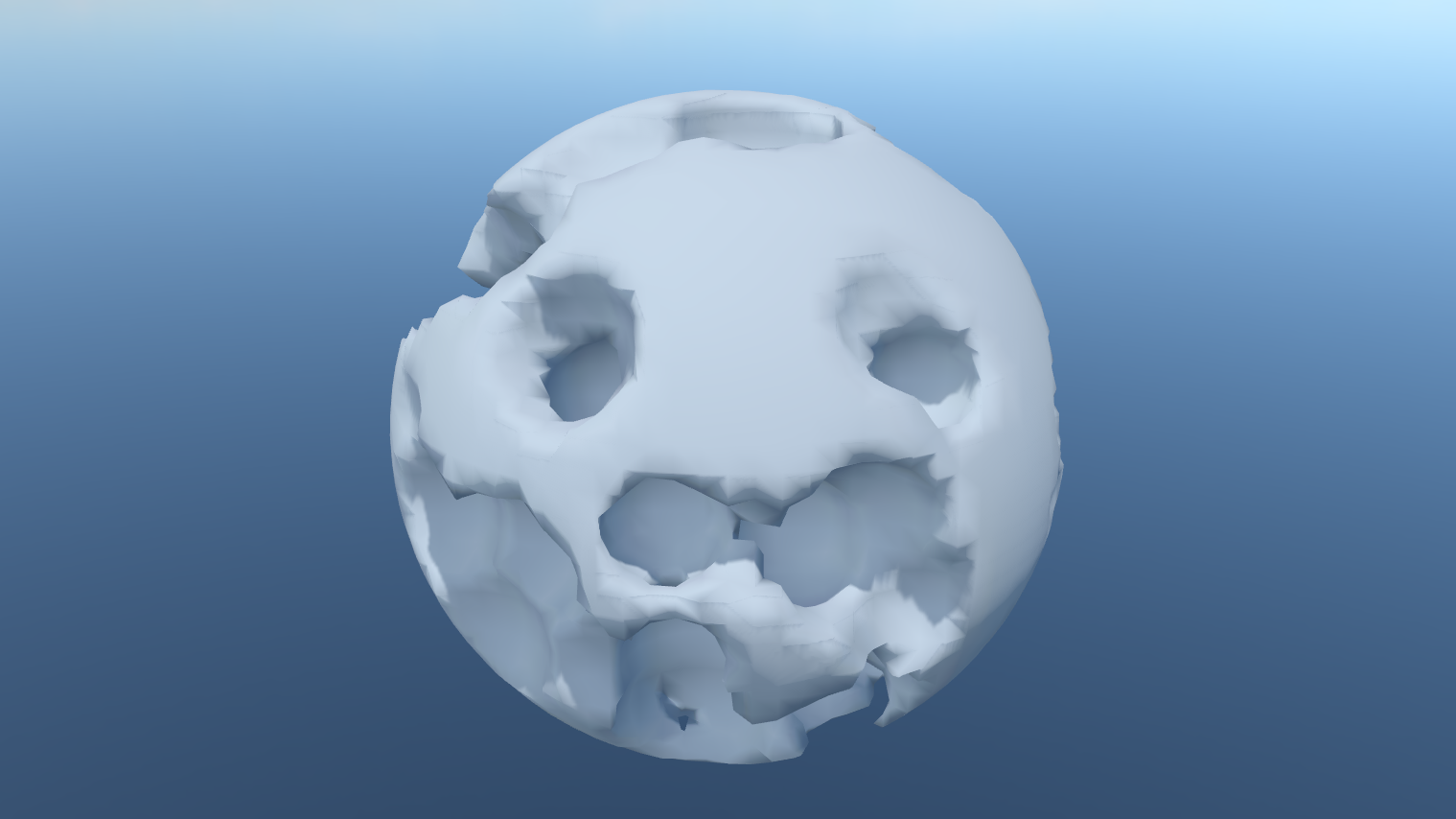

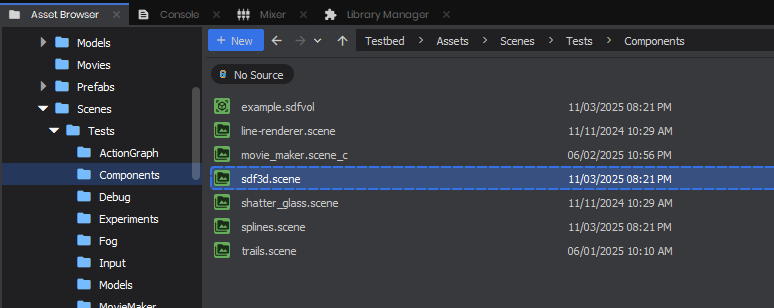

There's a simple example scene in Facepunch/sbox-scenestaging. When you have a copy of that project you can find the scene at Assets/Scenes/Tests/Components/sdf3d.scene:image.png30.82 KBWhen you run the scene you should see something like this:image.png496.6 KBThe basic things this demo uses to work are:
An SDF 3D World component
Holds one or more signed distance fields, and generates meshes from them
You can find it on the SDF World game object in sdf3d.scene
A .sdfvol resource
Describes an SDF material, including its resolution and appearance
The demo uses one named example.sdfvol
Code to modify the world
Uses AddAsync / SubtractAsync on an SDF 3D world instance with a particular .sdfvol
The modification code for the demo is in ExampleComponents/Sdf3DWorldExample.cs
If that demo works for you, see if you can spot the difference between that and what you were doing already. Hope that helps, and feel free to ask here if you need any more help!
