How to apply a shader to a Panel

Started by Daryl Winters 2 posts 277 views

Reply on sbox.game
  1. #1
    Daryl Winters 2,065
    Hey,

    I'm reworking on my previous jam entry and basically rewritting the junk jam code into something decent and up to date with the new api.

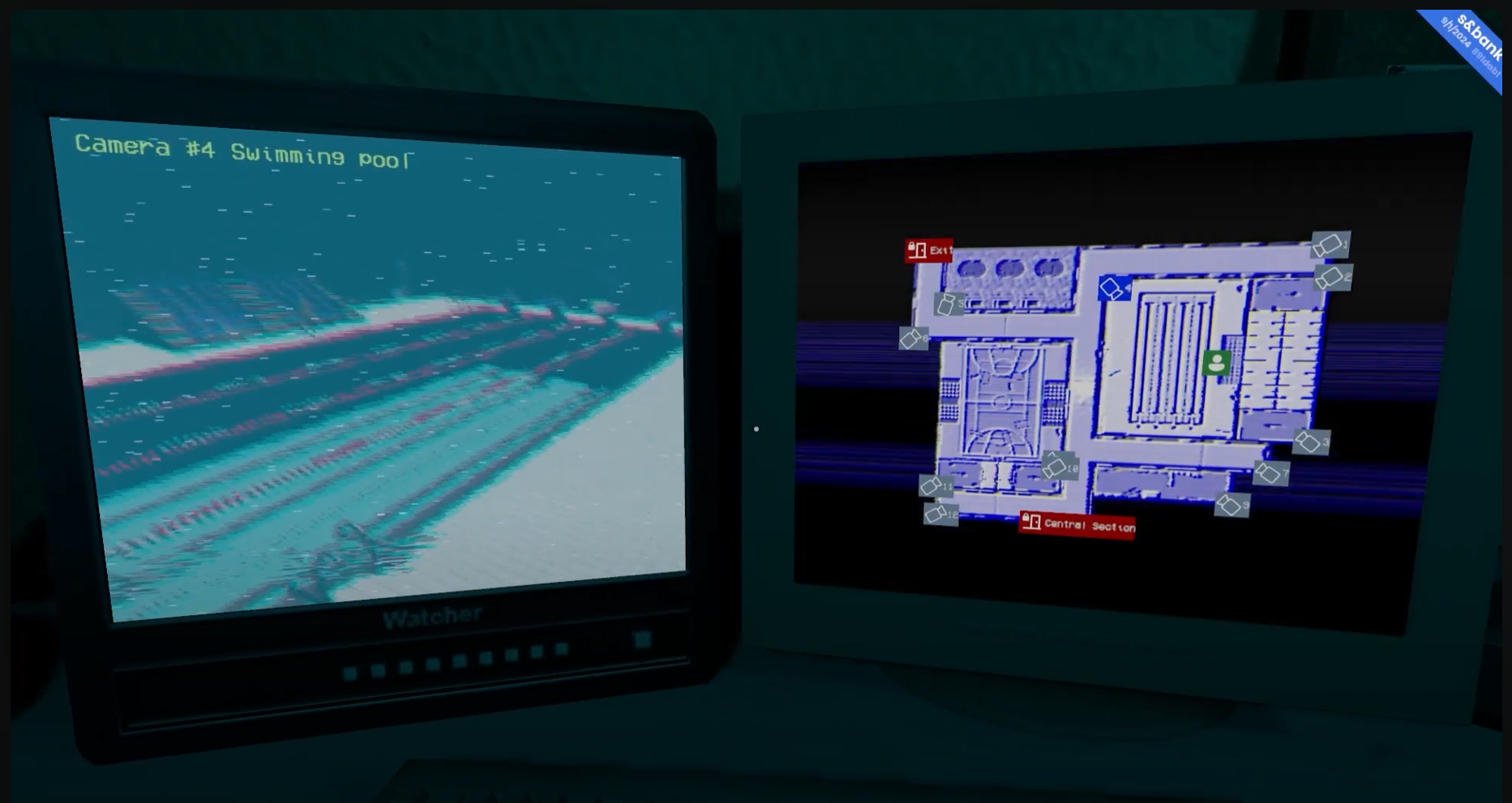

    In order to do a "Camera surveillance" system like this
    image.png 1.16 MB
    I'm rendering a Camera on a texture, build a razor world panel with it then add other UI elements.



    Previously:

    In order to do it in my jam entry I did a razor component that had a custom SceneCamera filled with a CameraComponent info (via UpdateSceneCamere() ).

    I created a render texture via Texture.CreateRenderTarget
    Then rendered my scenecamera via Graphics.RenderToTexture(_sceneCamera, _texture);
    And all my postprocesses component attached on my Camera gameobject where also rendered

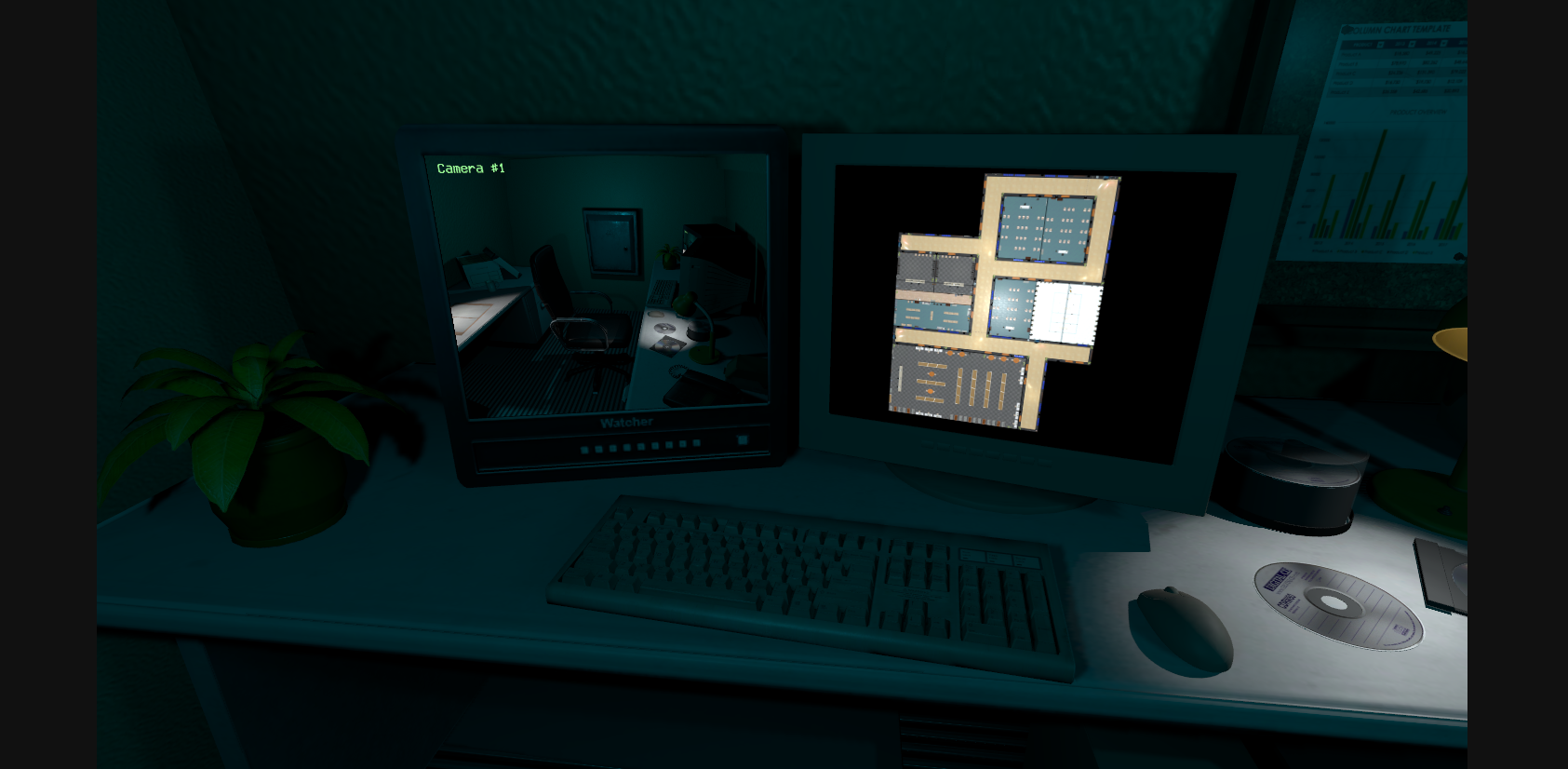

    Now:
    I'm using directly the CameraComponent.RenderToTexture() without the SceneCamera bullshit intermediary
    But the PostProcess components are not taken into accounts :/

    image.png 1.02 MB

    So I've some questions:

    - How can I make PostProcess work on rendered texture?
    - Is it possible to apply a custom shader on World panels? (so the ui is also affeced by the 'post process')





  2. #2
    Daryl Winters Started this 2,065
